0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board

    Buy cheap 0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board from wholesalers

    Buy cheap 0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board from wholesalers
    • Buy cheap 0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board from wholesalers

    0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board

    Ask Lasest Price
    Brand Name : CG
    Model Number : MKP X2
    Certification : VDE,CQC UL
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 100000000 Pieces
    Delivery Time : 15-21 work days
    • Product Details
    • Company Profile

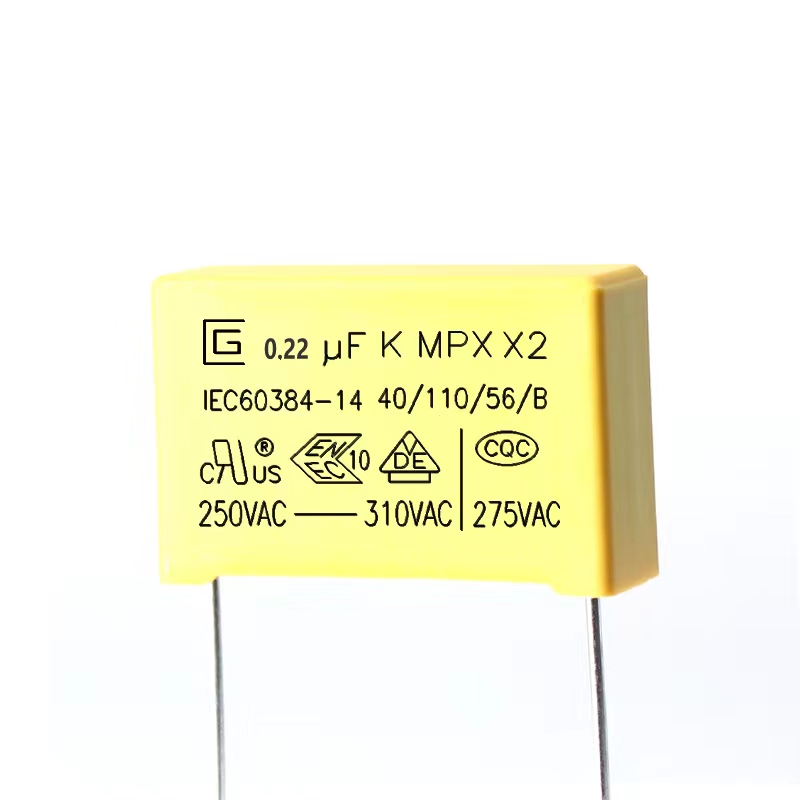

    0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board

    0.22uf 310v X2 Safety Capacitor Anti-Interference Capacitor


    Products Introduction


    MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating.

    They have excellent features of self-healing and good flame retardant according to UL 94-V0

    Type application
    The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.

    1. Operating temperature: -40°C ~ +110°C

    2. Capacitance range: 0.01uF~3.3uF

    3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

    4. Rated voltage: 310VAC,330VAC

    5. Dissipation factor:0.1%MAX AT 1KHz, 25°C

    6. Voltage proof: 2100VDC 1Sec (20°C)

    7. Insulation resistance:

    >30,000MΩ (C≤0.33uF)

    >10,000MΩ/ uF (C>0.33uF) AT 25°C

    8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

    1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

    ΔIR≥50% of the specified value.

    Features

    1 Non-inductive structure

    2 High moisture resistance

    3 Good self-healing properties

    4 Flame retardant (UL 94V-0 compliant)

    5 Very low loss

    6 Excellent frequency and temperature characteristics


    With a capacitance of 0.22uF and a maximum voltage rating of 310VAC,

    this capacitor offers excellent performance and stability to ensure smooth and uninterrupted operation of your electronic devices.

    In addition, its compact size and easy-to-install design make it a convenient and practical choice for DIY enthusiasts and professional technicians.

    Electrical specifications


    ItemCharacteristic requirementTest method&Condition
    Climatic Category40/110/56
    Passive Flammability ClassB
    Operating Temperature-40℃~+110℃
    Capacitance Range0.0022μF~2.2μF
    Capacitance Tolerance±10%(K),±20%(M)1KHz ,1.0Vrms ,25℃
    Rated Voltage250VAC/275VAC/300VAC/305VAC/310VAC
    Dissipation Factor1KHz<0.10%IR≥6000s
    Insulation ResistanceC≤0.33μFC>0.33μFUR>100V,100VDC,
    IR≥15000MΩIR≥6000s60S,20℃
    Withstand voltage Between TerminalsNo permanent breakdown or flashover4.3UR(d.c) 60s 25℃Cut off Current 10mA
    Withstand voltage Between Terminals and CaseNo permanent breakdown or flashover2UR+1500V(a.c) 60s 25℃ ≥2000V(a.c) 25℃
    MAX. Pulse rise time (dv/dt)Lead spacing
    7.5mm10mm15mm22.5mm27.5mm37.5mm
    600V/μs500V/μs400V/μs200V/μs150V/μs100V/μs
