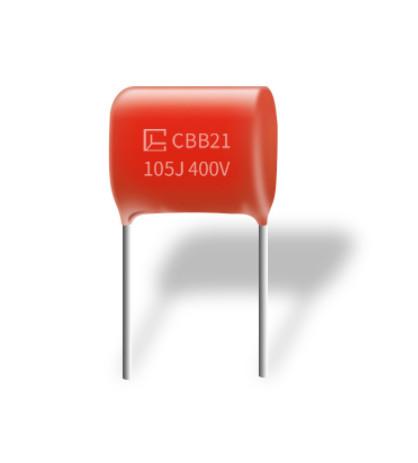

Good Moisture Resistance CBB21 105J 400V Metallized Polypropylene Film Capacitor Good Self-Healing Property ​

CBB21X can be understood as a reduced version of CBB21 capacitors, and can also be called ultra-small CBB21 capacitors, because in actual circuit use, some circuits have strict requirements on the volume of capacitors, and need to use small-volume, high-precision capacitors. At this time, it is possible CBB21X capacitors are used.

CBB21X belongs to the metallized polypropylene film capacitor, which is characterized by low high-frequency loss, suitable for high-frequency high-current excellent, high insulation resistance, long life, widely used in high-frequency, DC, AC and pulse circuits. . Excellent frequency and temperature characteristics, even at high frequencies, the loss is extremely small, using vacuum impregnated paraffin, high insulation resistance, good moisture resistance. It is suitable for high-frequency and high-current fields such as color TV S-correction circuits, and is widely used in high-frequency, DC, AC and pulse circuits, and can also be used in high-end energy-saving lamps, brackets, and ballast products.

Product features of CBB21X:

1. The volume is small, and the installation does not take up space.
2. Metallized polypropylene film, non-inductive structure, excellent electrical performance.
3. Excellent frequency and temperature characteristics.
4. Good self-healing property.
5. Wide working temperature range.

The role of CBB21 metal film capacitors:

Among all CBB capacitors, CBB21 capacitors can be said to be the most used type. It is mostly used in various DC, pulse, AC step-down, and high-frequency large current occasions. Especially in energy-saving lamps and electronic ballasts are widely used.

Usage:

This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.

Specification:

Features
Metallized polypropylene film composition, non-inductive structure;
low high frequency losses and low internal temperature rise;
low capacity variation, negative temperature coefficient;
Epoxy powder encapsulation.

Product Name:	CBB21/2(MPP) metalized polypropylene film capacitor
Material:	Metalized polypropylene film
Operating temperature:	-40℃~105℃
Rated voltage range:	100VDC,250VDC,400VDC,630VDC
Capacitance:	0.0047~3.3µF
Capacitance tolerance:	J(±5%) K(±10%) M(±20%)
Package Type:	Epoxy powder encapsulation
Packaging:	Customized carton;
Carton size:	Customized
Lead time:	7-30 days

Production process

What are the advantages of your products?

1. We have all models of material, save you time looking fort And recommend materials for you if you need.

2. With the same quality products, we can give you best priceInquiries to after-sale, we will provide good service, such asupdate product status, technical support etc (24 hour online)

3. We have many stocks, and the delivery time usually is short.

Dongguan Chenglue Electronics Co., Ltd. Number of employees: 152 employees. The company mainly produces and sells: X2 safety capacitors, CBB21/22, metallized film capacitors, Y1/Y2 safety capacitors, varistors. The price is 6%-8% lower than that of peer factories. CBB21/2 capacitors, film suppliers Qingdao Chengwen, Zhongshan Dongli, Quanzhou Jiadeli, all products are sprayed with tin-zinc 4/6 alloy, the products used are stable in operation under high temperature and high pressure conditions of 105 degrees, low loss and long service life.


Conventional products are equipped with 50K-100KPCS safety stock, large-volume conventional capacitors, and the delivery time is 3-5 days for batch delivery. Chenglue factory has a production scale of 20 Dewei winding machines, and the daily production of film capacitors is 300-500KPCS.


Products are widely used in LED power supply, power adapter, switching power supply, home appliance control board, lighting appliances, automotive electronics, chargers, motors, igniters and other electronic products. The product X2/Y safety capacitors have passed the United States (UL), Germany ( VDE), China (CQC), South Korea (KC) and other countries and regions product safety certification, product environmental protection has passed the requirements of ROHS, RECAH, halogen-free and other directives.


Since the establishment of the company, relying on advanced production equipment, continuous improvement of enterprise management mode, scientific and technological talents and well-trained workforce, we have strived to make Chenglue Electronics a supplier of electronic components for internationally renowned brands and well-known manufacturers. The company sincerely develops the market with the concept of "seeking reputation with quality, seeking development with reputation, and creating value for customers", and serves customers with the service concept of "customer needs are our work goals"



Company advantage

Complete testing equipment and production line​



At present, it has passed the in-depth inspection of SGS institutions, ISO9001: 2015 environmental management system, and other quality management system certifications​



To provide customers with professional customized services, according to different requirements of customers to develop, design, produce products that meet various special needs. Professional application engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customized services ,According to the different requirements of customers, we develop, design and produce products that meet various special needs. Professional application engineers come to assist in model selection and provide technical support for customers free of charge. Provide customers with professional customized services and develop products according to different requirements of customers. , design, and produce products that meet various special needs. Professional application engineers, on-site assistance in model selection, free technical support for customers, professional customized services for customers, research and development, design, and production that meet various requirements according to different requirements of customers. Professional application engineers for products with special needs, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application Engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application engineers, door-to-door assistance in model selection, Provide technical support to customers free of charge
