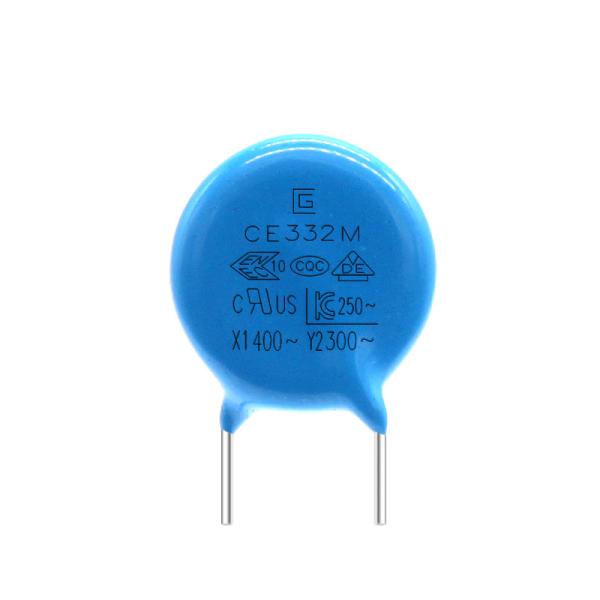

Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load

    Buy cheap Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load from wholesalers

    Buy cheap Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load from wholesalers
    • Buy cheap Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load from wholesalers

    Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load

    Ask Lasest Price
    Brand Name : SG
    Model Number : Y5U-332M-300VAC
    Certification : VDE, CQC
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100000000 Pieces
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    Safety 332M Capacitor Good Stability Low Loss For High Frequency AC Load

    Coated With Epoxy Resin 332M 300VAC Y2 Safety Capacitor Good Stability Low Loss​
    The safety Y2 capacitor is one of the Y capacitor series in the safety capacitor. As a member of the safety capacitor, the safety Y2 capacitor is also a protection method to protect the safety of users. In addition to complying with the corresponding grid voltage withstand voltage, the y capacitor also requires sufficient safety margins in terms of electrical and mechanical properties to avoid breakdown and short circuit phenomena under extremely harsh environmental conditions. Protecting personal safety is of great significance.
    There are some variable elements in the circuit, such as inductors, capacitors, etc. These variable elements generally can only bring about or reduce the relative change (or reduction) of the sinusoidal quantity of its corresponding frequency. For example, when the switch is turned on, the alternating current will change repeatedly between Y1 and Y2, and the electromagnetic field generated at this time (a magnetic field similar to the light emitted by the light source) will naturally generate force between the wires. "Relative" plays a decisive role.

    Features:
    Meeting various countries' safety standards
    Compact structure
    Cost-efficient
    Coated with epoxy resin
    Advantages
    1. We have all models of material, save you time looking fort And recommend materials for you if you need.
    2. With the same quality products, we can give you best priceInquiries to after-sale, we will provide good service, such asupdate product status, technical support etc (24 hour online)
    3. We have many stocks, and the delivery time usually is short.

    Product parameters

    Specification Reference StandardIEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
    Approved MonogramVDE / ENEC / IEC / UL / CSA / KC / CQC
    Subclass ; Rated Voltage(UR)X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
    Capacitance Range10pF to 10000pF
    Voltage Proof4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
    Capacitance ToleranceY5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
    Dissipation Factor (tgδ)Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
    Insulation Resistance(IR)IR≥10000MΩ,1min,100VDC
    Operating Temperature-40℃ to +85℃ ; -40℃ to +125℃
    Temperature CharacteristicY5P,Y5U,Y5V
    Flame Retardant EpoxyUL94-V0
    modelwidththicknessfoot spacingleadVoltagecapacitymaterialTolerance
    Y2-103M-Y5Vφ13mmT3.8mmF10mmL3-22mm300V[**]C10000pFY5V±20%
    Y2-472M-Y5Vφ9.5mmT3.8mmF7.5mmL3-22mm300V[**]C4700pFY5V±20%
    Y2-332M-Y5Vφ8.5mmT3.8mmF7.5mmL3-22mm300V[**]C3300pFY5V±20%
    Y2-222M-Y5Vφ7.5mmT3.8mmF7.5mmL3-22mm300V[**]C2200pFY5V±20%
    Y2-152M-Y5Vφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C1500pFY5V±20%
    Y2-102M-Y5Vφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C1000pFY5V±20%
    Y2-472M-Y5Uφ13mmT3.8mmF10mmL3-22mm300V[**]C4700pFY5U±20%
    Y2-332M-Y5Uφ11mmT3.8mmF10mmL3-22mm300V[**]C3300pFY5U±20%
    Y2-222M-Y5Uφ8.5mmT3.8mmF7.5mmL3-22mm300V[**]C2200pFY5U±20%
    Y2-152M-Y5Uφ8.5mmT3.8mmF7.5mmL3-22mm300V[**]C1500pFY5U±20%
    Y2-102M-Y5Uφ7.5mmT3.8mmF7.5mmL3-22mm300V[**]C1000pFY5U±20%
    Y2-821K-Y5Uφ7.5mmT3.8mmF7.5mmL3-22mm300V[**]C820pFY5U±10%
    Y2-681K-Y5Uφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C680pFY5U±10%
    Y2-561K-Y5Uφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C560pFY5U±10%
    Y2-471K-Y5Uφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C470pFY5U±10%
    Y2-102K-Y5Pφ10mmT3.8mmF7.5mmL3-22mm300V[**]C1000pFY5P±10%
    Y2-821K-Y5Pφ10mmT3.8mmF7.5mmL3-22mm300V[**]C820pFY5P±10%
    Y2-681K-Y5Pφ8.5mmT3.8mmF7.5mmL3-22mm300V[**]C680pFY5P±10%
    Y2-561K-Y5Pφ8mmT3.8mmF7.5mmL3-22mm300V[**]C560pFY5P±10%
    Y2-471K-Y5Pφ7.5mmT3.8mmF7.5mmL3-22mm300V[**]C470pFY5P±10%
    Y2-331K-Y5Pφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C330pFY5P±10%
    Y2-221K-Y5Pφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C220pFY5P±10%
    Y2-151K-Y5Pφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C150pFY5P±10%
    Y2-101K-Y5Pφ6.5mmT3.8mmF7.5mmL3-22mm300V[**]C100pFY5P±10%


    Production Process​
    Product structure​
    Product Usage​

    FAQ
    Q: What is the lead time ?
    A: Honestly, it depends on the order quantity and the season you place the order.Usually it takes 10-15 working days in normal season.
    Q: What is the Samples time ?
    A: Usually we quote within 24 hours after we get inquiry.If you are very urgent to get the price, please call us so that we will quote you as early as possible.
    Q: Is OEM service available?
    A: Yes, we can provide customers brand printing as well as capacitor design.etc.
