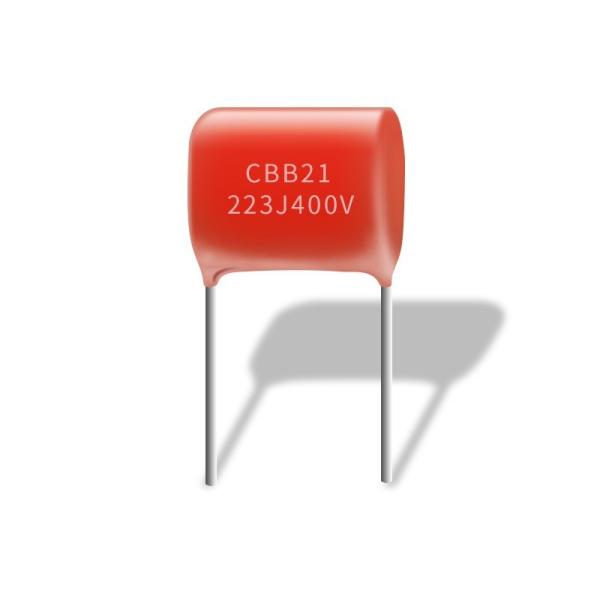

High Insulation Low Loss CBB21 223J 400V Metallized Polyester Film Capacitor High-Frequency Resistance​

CBB21X can be understood as a reduced version of CBB21 capacitors, and can also be called ultra-small CBB21 capacitors, because in actual circuit use, some circuits have strict requirements on the volume of capacitors, and need to use small-volume, high-precision capacitors. At this time, it is possible CBB21X capacitors are used.

What are the characteristics and functions of CBB21 metal film capacitors?

1. High-frequency resistance, and high-frequency loss is very small, much smaller than CL metallized polyester film capacitors, high reliability, good stability, and long life.
2. The internal temperature rise is small, the high temperature resistance is 105°C, and the high temperature resistance performance is good. (It should be noted that there are many CBB21 capacitors on the market that cut corners. They use poor materials and can only withstand high temperatures of 85°C)
3. High insulation resistance, it has good self-healing properties, of course, this is also a common feature of most film capacitors.
4. The exterior is encapsulated with epoxy resin. If you want to use it in some harsh environments, you can also choose MPB capacitors. Its internal core is the same as that of CBB21 capacitors, but the exterior is sealed with a plastic shell.

Usage:

Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.

Specification:

Outline Drawing:

FAQ

Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.

What are the reasons why the CBB21 capacitor burns out?

1. Bought low-quality capacitors
Now the cost of CBB21 capacitors produced by different manufacturers is actually very small. If the price of CBB21 capacitors you buy is obviously lower than the market average price, the possibility of buying inferior capacitors is very high. The materials used for this inferior capacitors are very poor. If the production process can be saved, the performance cannot be guaranteed, and the capacitor with too poor quality is definitely easy to burn out.
2. The working environment temperature is too high
Even a CBB21 capacitor with excellent quality is easy to burn out if the working environment temperature is too high. Generally, the temperature resistance of CBB21 capacitors is -40°C~105°C. Although it can withstand 105°C in theory, its working temperature is higher. High, the life of CBB21 capacitors is drastically reduced.
Generally, a qualified CBB21 capacitor burns out, which is basically caused by too high ambient temperature, such as being too close to an electronic component with a large heat generation (such as a MOS tube), or the entire circuit has a large heat dissipation, and the heat cannot be discharged smoothly. etc., are the core reasons for the damage of CBB21 capacitors.
Excessive operating temperature is one of the most common and most likely causes of CBB21 capacitor damage.
3. Improper selection of capacitors
For example, the current is too large, exceeding the working current of the CBB21 capacitor; the voltage in the circuit is too high, exceeding the rated working voltage of the CBB21 capacitor, etc. If the type is not selected properly, the CBB21 capacitor will be easily damaged during operation.

Dongguan Chenglue Electronics Co., Ltd. Number of employees: 152 employees. The company mainly produces and sells: X2 safety capacitors, CBB21/22, metallized film capacitors, Y1/Y2 safety capacitors, varistors. The price is 6%-8% lower than that of peer factories. CBB21/2 capacitors, film suppliers Qingdao Chengwen, Zhongshan Dongli, Quanzhou Jiadeli, all products are sprayed with tin-zinc 4/6 alloy, the products used are stable in operation under high temperature and high pressure conditions of 105 degrees, low loss and long service life.


Conventional products are equipped with 50K-100KPCS safety stock, large-volume conventional capacitors, and the delivery time is 3-5 days for batch delivery. Chenglue factory has a production scale of 20 Dewei winding machines, and the daily production of film capacitors is 300-500KPCS.


Products are widely used in LED power supply, power adapter, switching power supply, home appliance control board, lighting appliances, automotive electronics, chargers, motors, igniters and other electronic products. The product X2/Y safety capacitors have passed the United States (UL), Germany ( VDE), China (CQC), South Korea (KC) and other countries and regions product safety certification, product environmental protection has passed the requirements of ROHS, RECAH, halogen-free and other directives.


Since the establishment of the company, relying on advanced production equipment, continuous improvement of enterprise management mode, scientific and technological talents and well-trained workforce, we have strived to make Chenglue Electronics a supplier of electronic components for internationally renowned brands and well-known manufacturers. The company sincerely develops the market with the concept of "seeking reputation with quality, seeking development with reputation, and creating value for customers", and serves customers with the service concept of "customer needs are our work goals"



Company advantage

Complete testing equipment and production line​



At present, it has passed the in-depth inspection of SGS institutions, ISO9001: 2015 environmental management system, and other quality management system certifications​



To provide customers with professional customized services, according to different requirements of customers to develop, design, produce products that meet various special needs. Professional application engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customized services ,According to the different requirements of customers, we develop, design and produce products that meet various special needs. Professional application engineers come to assist in model selection and provide technical support for customers free of charge. Provide customers with professional customized services and develop products according to different requirements of customers. , design, and produce products that meet various special needs. Professional application engineers, on-site assistance in model selection, free technical support for customers, professional customized services for customers, research and development, design, and production that meet various requirements according to different requirements of customers. Professional application engineers for products with special needs, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application Engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application engineers, door-to-door assistance in model selection, Provide technical support to customers free of charge
