Gas boiler Waterproof NTC 10k Ohm Thermistor Accuracy Temperature Sensor Cable Probe

Ask Lasest Price
Brand Name :	SG
Model Number :	NTC Temperature Sensor
Certification :	CQC ROHS
Price :	Negotiate
Payment Terms :	T/T, L/C
Supply Ability :	50000000pcs per month
Delivery Time :	Negotiate

Add to Cart

Product Details
Company Profile

Gas boiler Waterproof NTC 10k Ohm Thermistor Accuracy Temperature Sensor Cable Probe

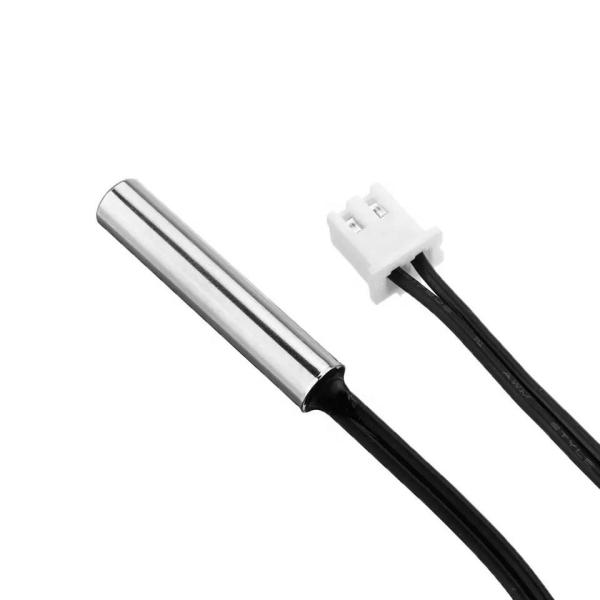

Waterproof Stainless Steel Sheath NTC 10K 1% 3950 Thermistor Accuracy Temperature Sensor Cable Probe

Negative temperature coefficient thermistors are made of metal oxides such as manganese, cobalt, nickel and copper, and are manufactured by ceramic technology. These metal oxide materials all have semiconductor properties, because they are completely similar to semiconductor materials such as germanium and silicon in terms of conductivity. When the temperature is low, the number of carriers (electrons and holes) in these oxide materials is small, so its resistance value is high; as the temperature increases, the number of carriers increases, so the resistance value decreases. The range of NTC thermistor at room temperature is 100~1000000 ohms, and the temperature coefficient is -2[%]~-6.5[%].

Applications of M8 Screw NTC Temperature Sensor
1. Heater, Warmer, Automobile air conditioners, Refrigerators, Freezers,
2. Water heaters, Gas boiler, Electric kettles, Wall-hung gas boiler, Water dispensers,
3. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate,
4. Iron, Garment steamer, Hair straighten, Coffee maker, Coffee pot,
6. Rice cooker, Incubator temperature control, Egg boiler, etc.
Details of Thread Probe NTC Temperature Sensor
WATER-PROOF
Waterproof Stainless steel sheath
NO EXTERNAL COMPONENTS
Unique 1-wire interface requires only one port pin for communication.
UNIQL JE STORAGE METHOD
Each device has a unique 64 bit serial code stored in an onboard ROM.

Type	NTC(thermistor) Temperature Sensor
Temperature range	-50℃ ~ +300℃；Customized
Accurancy	1%；5%；10%
RT(25℃)	1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized
B value	3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized
Probe Material	Stainless steel SS304； aluminum；copper；plastic；epoxy；glass
Installation	Flanged；Surface；Threaded；Plastic；Straight；Film；Customized
Wire Material	Heat shrinkable tube；PVC tube；glass fiber tube； teflon tube
Connector	Molex；JST；DuPont；CWB；CJT；U type；Customized
Waterproof	IP67；IP68

All parameters could be custom design.

Service standards: we are committed to providing a high quality,and responsive services to all clients.

The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.

Advantages and characteristics of Auto Temperature Sensor

We have the heart of NTC temperature sensor--full sets of production line and core technology of pro-prietary intellectual property rights for high performance temperature measurement NTC thermistor.
We have all kinds of NTC core element of NTC Temperature sensor--high performance temperature measurement thermistors are own production,complete series,structural diversity. Our products can meet the requirements of prevision measurement in different temperature area from low temperature,medium and low temperature to medium-high temperature.These products have passed many safety certifications of domestic and foreign.
Resistance and temperature characteristics can meet customer's requirements entirely,and support best convenience to customers.
Mature manufacturing technique of NTC temperature sensor,Large-scale mass production,product have the best ability of insulation sealing,Mechanical collision,resistance to bending,well-set.

Reliability Test

Test Item	Test Standard	Test method	Performance requirements
Zero Power Resistance	IEC 60539-1	Immerse samples in the constant temperature bath at 25℃±0.005℃,test steady resistance	Resistance tol ±1%
B value	IEC60539-1	Immerse samples in the constant temperature bath at 25℃,50℃(or 85℃), test steady resistance,and calculate B value	Resistance tol ±1%
Free fall	IEC60068-2-32	Fall height: 1.5±0.1m,Surface: Cement , 1 time	No obvious damage, R25 △R/R≤±1%
Insulation	IEC60539-1	500V pressure on insulation shell test insulation resistance	>500MOhm
Withstand voltage	IEC60539-1	Withstand voltage: 1500V/AC ,Leakage current:2mA Lasting: 60sec	No obvious damage
Tension	IEC60068-2-21	Pull uniform speed at the end, F>4.0KG(requested by customer)	No obvious damage, R25 △R/R≤±1%
Vibration	Q/HBm 108-94	Test frequency: 10~500Hz,swing: 1.2mm acceleration: 30m/s2 Direction X,Y,Z Time:8Hour/direction	No obvious damage, R25 △R/R≤±1%
Steady humidity and heat	IEC60068-2-78	Temp:40±2℃ Humidity:92-95%RH Time:1000±24Hour	No obvious damage, R25 △R/R≤±1%
Thermal time constant	EC60539-1	Immerse in 25℃ water,after thermal balance,immerse in 85℃,resistance arrives 63.2%,calculate total time	<10 sec
High temperature storage	IEC60068-2-2	Temp:125℃±5℃ Time: 1000±24Hour	No obvious damage, R25 △R/R≤±1%
Cold and thermal shock	IEC60068-2-14	-40℃~+125℃ T1:30min Cycle time:1000	No obvious damage, R25 △R/R≤±1%
Knock experiment	IEC60068-2-77	Acceleration:250m/s2 Pulse lasting: 6ms Knock times: 1000 Recovery time: 2 Hour	No obvious damage, R25 △R/R≤±1%
Low temperature storage	IEC60068-2-1	Temp: 40±2℃ Time: 1000±24Hour	No obvious damage, R25 △R/R≤±1%
Salt spray	IEC60068-2-11	Temp: 35±2℃ Collection hour : 1.0mL~2.0mL Time: determine per as actual demand	No obvious damage, R25 △R/R≤±1%

HOW TO ORDER

In order to help you get the exact model, please offer the following necessary info:
1. The application of the thermistor:__________
2.Working environment of thermistor:________
3.The range of operation temperature:___°c to ___°c
4.The dimension and the drawing of the Thermistor
