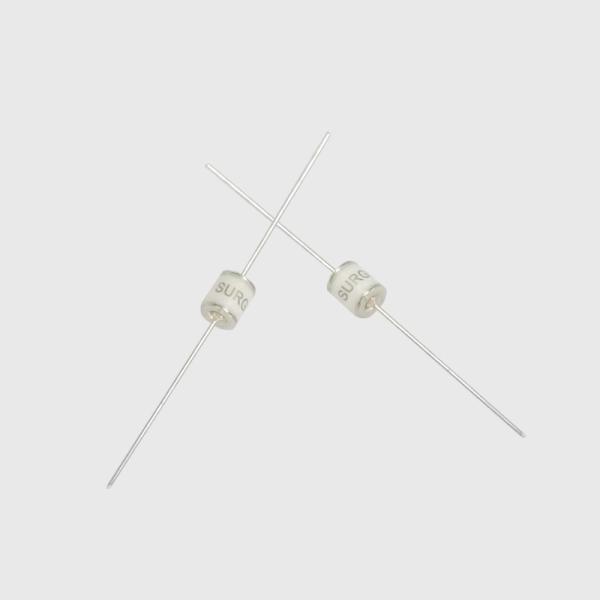

Low Capacitance Gas Discharge Tubes - SX5 Series DC Spark-Over Voltage : 70~5000V​

SX5 0 - 230X SMDT.pdf

Gas discharge tube is a gap-type lightning protection component, which has been widely used in lightning protection of communication systems. The discharge tube is often used in the first or first two stages of a multi-level protection circuit to discharge lightning instantaneous overcurrent and limit overvoltage. Since the inter-electrode insulation resistance of the discharge tube is large and the parasitic capacitance is small, it is not suitable for high frequency Lightning protection for signal lines has definite advantages. The main shortcomings of the protection characteristics of the discharge tube are that the discharge time delay is large, the action sensitivity is not ideal, and it is difficult to effectively suppress the lightning wave with a steep rise of the wave head, and there is a freewheeling problem in the lightning protection of the power system.

Commonly used gas discharge tubes include two-electrode discharge tubes and three-electrode discharge tubes. Most of the packaging shell materials are ceramics, so they are called ceramic discharge tubes.

Principle

The working principle of the discharge tube is gas gap discharge. When a certain voltage is applied between the two poles of the discharge tube, an uneven electric field is generated between the electrodes: under the action of this electric field, the gas in the tube begins to dissociate. When the applied voltage increases to make the gap between the electrodes When the field strength exceeds the dielectric strength of the gas, the gap between the two poles will be broken down by the discharge, and the original insulating state will be transformed into a conductive state. After the conduction, the voltage between the two poles of the discharge tube will remain at the residual voltage level determined by the discharge arc. , this residual voltage is generally very low, so that the electronic equipment connected in parallel with the discharge tube is protected from overvoltage damage

Features

1. RoHS & HF compliant
2. SMD Structure
3. DC Spark-over voltage: 70~5000V 4. Low Capacitance
5. Agency Recognition : UL
6. Operating temperature:-30°C ~ +85°C Storage
temperature:-40°C ~ +115°C

Warehouse Storage Conditions of Products

· Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year

Recommended Applications

1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics

Dongguan Chenglue Electronics Co., Ltd. Number of employees: 152 employees. The company mainly produces and sells: X2 safety capacitors, CBB21/22, metallized film capacitors, Y1/Y2 safety capacitors, varistors. The price is 6%-8% lower than that of peer factories. CBB21/2 capacitors, film suppliers Qingdao Chengwen, Zhongshan Dongli, Quanzhou Jiadeli, all products are sprayed with tin-zinc 4/6 alloy, the products used are stable in operation under high temperature and high pressure conditions of 105 degrees, low loss and long service life.


Conventional products are equipped with 50K-100KPCS safety stock, large-volume conventional capacitors, and the delivery time is 3-5 days for batch delivery. Chenglue factory has a production scale of 20 Dewei winding machines, and the daily production of film capacitors is 300-500KPCS.


Products are widely used in LED power supply, power adapter, switching power supply, home appliance control board, lighting appliances, automotive electronics, chargers, motors, igniters and other electronic products. The product X2/Y safety capacitors have passed the United States (UL), Germany ( VDE), China (CQC), South Korea (KC) and other countries and regions product safety certification, product environmental protection has passed the requirements of ROHS, RECAH, halogen-free and other directives.


Since the establishment of the company, relying on advanced production equipment, continuous improvement of enterprise management mode, scientific and technological talents and well-trained workforce, we have strived to make Chenglue Electronics a supplier of electronic components for internationally renowned brands and well-known manufacturers. The company sincerely develops the market with the concept of "seeking reputation with quality, seeking development with reputation, and creating value for customers", and serves customers with the service concept of "customer needs are our work goals"



Company advantage

Complete testing equipment and production line​



At present, it has passed the in-depth inspection of SGS institutions, ISO9001: 2015 environmental management system, and other quality management system certifications​



To provide customers with professional customized services, according to different requirements of customers to develop, design, produce products that meet various special needs. Professional application engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customized services ,According to the different requirements of customers, we develop, design and produce products that meet various special needs. Professional application engineers come to assist in model selection and provide technical support for customers free of charge. Provide customers with professional customized services and develop products according to different requirements of customers. , design, and produce products that meet various special needs. Professional application engineers, on-site assistance in model selection, free technical support for customers, professional customized services for customers, research and development, design, and production that meet various requirements according to different requirements of customers. Professional application engineers for products with special needs, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application Engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application engineers, door-to-door assistance in model selection, Provide technical support to customers free of charge
