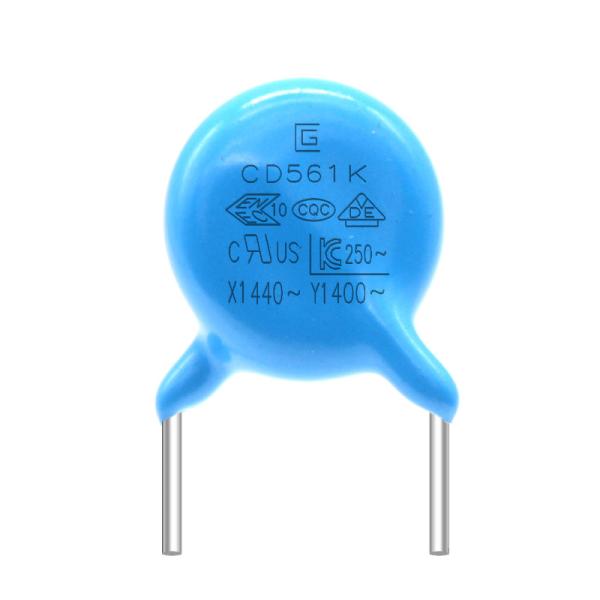

Low Loss 561K 400VAC Y1 Safety Capacitor AC Capacitors That Have Passed And Complied With Safety​

The Y1 capacitor is a safety capacitor, and such a capacitor will not cause electric shock after the capacitor fails, and will not endanger personal safety. It includes two types of X capacitors and Y capacitors. X capacitors are capacitors connected between the two lines of the power line (L-N), and metal film capacitors are generally used; Y capacitors are connected between the two lines of the power line and the ground (L-E , N-E) capacitance, generally appear in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.

Y1 Safety Capacitor .pdf

Features:

Operating temperature range: -25 to +85 celium degree.
Working voltage: DC 1, 2,3, 6.3, 10 and 15kV
Withstanding voltage: 1.5 times of working voltage 1kV <=UR <=10kVUT = 1. 5UR+500V, UR <=10kV, UT = 1.5UR
Capacitance: measured at 20 +-2celium degree, with 5Vrms maximumClass I 1+-0.2MHz and class II 1+-0.2kHz
Capacitance tolerance: J: +-5%, K: +-10%, M: +-20% and Z: +80%-20%
Dissipation factor (DF): same condition as the capacitanceSL tgd <= 0.15%N3300 tgd <= 0.4%Y5P tgd <= 2.5%Z5U tgd <= 2.5%Z5V tgd <= 2.5%Bn tgd <= 0.5%Y5R tgd <= 0.35%
Insulation resistance (IR): with rated voltage 500V test 60 +-5secondsIR >= 10,000MQ
Temperature characteristic: SLN3300, Y5P, Z5U, Z5V and Y5R

Advantages

1. We have all models of material, save you time looking for it.And recommend materials for you if you need.
2. With the same quality products,we can give you best price. Inquiries to after-sale, we will provide good service,such as update product status, technical support etc.(24 hour online)
3. We have many stocks, and the delivery time usually is short.

Application range:

Frequency conversion
frequency division and other AC
large pulse circuits
especially audio frequency divider circuits with high fidelity requirements

Product Voltage, Material, Size reference Table

Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	Size (mm)
					D.max	T.max	P±0.8	d±0.05
Q065B□□100K□	400Vac	(B) Y5P ±10	10pF	K ±10%	6.5	4.5	10	0.55
Q065B□□150K□			15pF		6.5	4.5	10	0.55
Q070B□□220K□			22pF		7.0	4.5	10	0.55
Q070B□□330K□			33pF		7.0	4.5	10	0.55
Q070B□□470K□			47pF		7.0	4.5	10	0.55
Q070B□□560K□			56pF		7.0	4.5	10	0.55
Q070B□□620K□			62pF		7.0	4.5	10	0.55
Q070B□□820K□			82pF		7.0	4.5	10	0.55
Q065B□□101K□			100pF		6.5	4.5	10	0.55
Q065B□□221K□			220pF		6.5	4.5	10	0.55
Q075B□□331K□			330pF		7.5	4.5	10	0.6
Q085B□□471K□			470pF		8.5	4.5	10	0.6
Q085B□□561K□			560pF		8.5	4.5	10	0.6
Q095B□□681K□			680pF		9.5	4.5	10	0.6
Q110B□□821K□			820pF		11.0	4.5	10	0.6
Q115B□□102K□			1000pF		11.5	4.5	10	0.6
Q065E□□471K□		(E) Y5U +22% -56%	470pF		6.5	4.5	10	0.55
Q075E□□561K□			560pF		7.5	4.5	10	0.6
Q075E□□681K□			680pF		7.5	4.5	10	0.6
Q075E□□821K□			820pF		7.5	4.5	10	0.6
Q085E□□102K□			1000pF		8.5	4.5	10	0.65
Q095E□□152M□			1500pF	M ±20%	9.5	4.5	10	0.65
Q105E□□222M□			2200pF		10.5	4.5	10	0.65
Q115E□□332M□			3300pF		11.5	4.5	10	0.65
Q065F□□102M□		(F) Y5V +22% -82%	1000pF		6.5	4.5	10	0.55
Q075F□□152M□			1500pF		7.5	4.5	10	0.6
Q085F□□222M□			2200pF		8.5	4.5	10	0.6
Q100F□□332M□			3300pF		10.0	4.5	10	0.65
Q115F□□472M□			4700pF		11.5	4.5	10	0.65

Specification and Test Method

Production Process​

Dongguan Chenglue Electronics Co., Ltd. Number of employees: 152 employees. The company mainly produces and sells: X2 safety capacitors, CBB21/22, metallized film capacitors, Y1/Y2 safety capacitors, varistors. The price is 6%-8% lower than that of peer factories. CBB21/2 capacitors, film suppliers Qingdao Chengwen, Zhongshan Dongli, Quanzhou Jiadeli, all products are sprayed with tin-zinc 4/6 alloy, the products used are stable in operation under high temperature and high pressure conditions of 105 degrees, low loss and long service life.


Conventional products are equipped with 50K-100KPCS safety stock, large-volume conventional capacitors, and the delivery time is 3-5 days for batch delivery. Chenglue factory has a production scale of 20 Dewei winding machines, and the daily production of film capacitors is 300-500KPCS.


Products are widely used in LED power supply, power adapter, switching power supply, home appliance control board, lighting appliances, automotive electronics, chargers, motors, igniters and other electronic products. The product X2/Y safety capacitors have passed the United States (UL), Germany ( VDE), China (CQC), South Korea (KC) and other countries and regions product safety certification, product environmental protection has passed the requirements of ROHS, RECAH, halogen-free and other directives.


Since the establishment of the company, relying on advanced production equipment, continuous improvement of enterprise management mode, scientific and technological talents and well-trained workforce, we have strived to make Chenglue Electronics a supplier of electronic components for internationally renowned brands and well-known manufacturers. The company sincerely develops the market with the concept of "seeking reputation with quality, seeking development with reputation, and creating value for customers", and serves customers with the service concept of "customer needs are our work goals"



Company advantage

Complete testing equipment and production line​



At present, it has passed the in-depth inspection of SGS institutions, ISO9001: 2015 environmental management system, and other quality management system certifications​



To provide customers with professional customized services, according to different requirements of customers to develop, design, produce products that meet various special needs. Professional application engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customized services ,According to the different requirements of customers, we develop, design and produce products that meet various special needs. Professional application engineers come to assist in model selection and provide technical support for customers free of charge. Provide customers with professional customized services and develop products according to different requirements of customers. , design, and produce products that meet various special needs. Professional application engineers, on-site assistance in model selection, free technical support for customers, professional customized services for customers, research and development, design, and production that meet various requirements according to different requirements of customers. Professional application engineers for products with special needs, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application Engineers, door-to-door assistance in model selection, and free technical support for customers. Provide customers with professional customization services, develop, design, and produce products that meet various special needs according to different requirements of customers. Professional application engineers, door-to-door assistance in model selection, Provide technical support to customers free of charge
