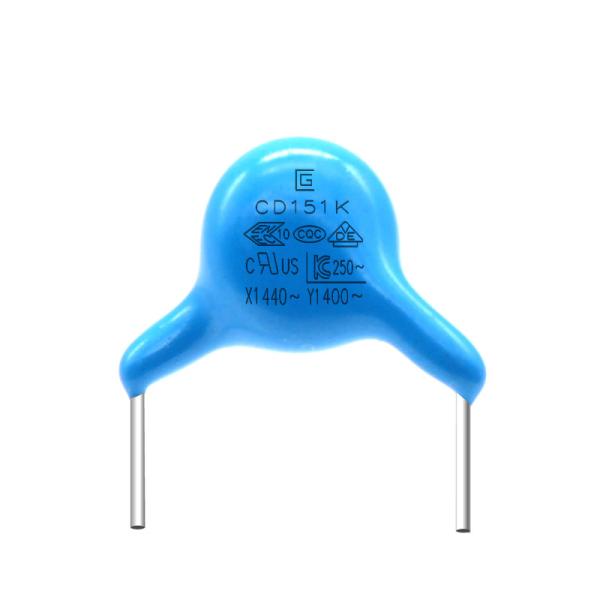

151K 400VAC Y1 Safety Capacitor Strong Over-Current Capability Small Capacity And Loss Attenuation.​

Y1 Safety Capacitor .pdf

The Y1 capacitor is a safety capacitor, and such a capacitor will not cause electric shock after the capacitor fails, and will not endanger personal safety. It includes two types of X capacitors and Y capacitors. X capacitors are capacitors connected between the two lines of the power line (L-N), and metal film capacitors are generally used; Y capacitors are connected between the two lines of the power line and the ground (L-E , N-E) capacitance, generally appear in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.

The bottom of the Y capacitor is divided into Y1, Y2, Y3, and Y4. The main differences are:

1. Y1 high voltage resistance is greater than 8 kV,
2. Y2 high voltage resistance is greater than 5 kV,
3. Y3 high pressure resistance n/a
4. Y4 high voltage resistance is greater than 2.5 kV

Features

1. Impulse voltage guaranteed 12kV0-p.
2. Operating temperature range guaranteed up to 125°C.
3. Dielectric strength: AC4000V
4. Class X1/Y1 capacitors certified by ENEC(VDE)/UL/CQC.
5. Can be use with a component in appliances requiring
reinforced insulation and double insulation based on
UL1492, IEC60065 and IEC60950.
6. Coated with flame-retardant halogen-free* epoxy resin
(conforming to UL94V-0 standard).
* Cl=900ppm max., Br=900ppm max. and
Cl+Br=1500ppm max.
7. Taping available for automatic insertion.
8. Rated Voltage: X1: AC500V(r.m.s.), Y1: AC500V(r.m.s.)

Product Voltage, Material, Size reference Table

Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	Size (mm)
					D.max	T.max	P±0.8	d±0.05
Q065B□□100K□	400Vac	(B) Y5P ±10	10pF	K ±10%	6.5	4.5	10	0.55
Q065B□□150K□			15pF		6.5	4.5	10	0.55
Q070B□□220K□			22pF		7.0	4.5	10	0.55
Q070B□□330K□			33pF		7.0	4.5	10	0.55
Q070B□□470K□			47pF		7.0	4.5	10	0.55
Q070B□□560K□			56pF		7.0	4.5	10	0.55
Q070B□□620K□			62pF		7.0	4.5	10	0.55
Q070B□□820K□			82pF		7.0	4.5	10	0.55
Q065B□□101K□			100pF		6.5	4.5	10	0.55
Q065B□□221K□			220pF		6.5	4.5	10	0.55
Q075B□□331K□			330pF		7.5	4.5	10	0.6
Q085B□□471K□			470pF		8.5	4.5	10	0.6
Q085B□□561K□			560pF		8.5	4.5	10	0.6
Q095B□□681K□			680pF		9.5	4.5	10	0.6
Q110B□□821K□			820pF		11.0	4.5	10	0.6
Q115B□□102K□			1000pF		11.5	4.5	10	0.6
Q065E□□471K□		(E) Y5U +22% -56%	470pF		6.5	4.5	10	0.55
Q075E□□561K□			560pF		7.5	4.5	10	0.6
Q075E□□681K□			680pF		7.5	4.5	10	0.6
Q075E□□821K□			820pF		7.5	4.5	10	0.6
Q085E□□102K□			1000pF		8.5	4.5	10	0.65
Q095E□□152M□			1500pF	M ±20%	9.5	4.5	10	0.65
Q105E□□222M□			2200pF		10.5	4.5	10	0.65
Q115E□□332M□			3300pF		11.5	4.5	10	0.65
Q065F□□102M□		(F) Y5V +22% -82%	1000pF		6.5	4.5	10	0.55
Q075F□□152M□			1500pF		7.5	4.5	10	0.6
Q085F□□222M□			2200pF		8.5	4.5	10	0.6
Q100F□□332M□			3300pF		10.0	4.5	10	0.65
Q115F□□472M□			4700pF		11.5	4.5	10	0.65

Specification and Test Method

Production Process​

Dongguan Chenglue Electronics Co., Ltd. Number of employees: 152 employees. The company mainly produces and sells: X2 safety capacitors, CBB21/22, metallized film capacitors, Y1/Y2 safety capacitors, varistors. The price is 6%-8% lower than that of peer factories. CBB21/2 capacitors, film suppliers Qingdao Chengwen, Zhongshan Dongli, Quanzhou Jiadeli, all products are sprayed with tin-zinc 4/6 alloy, the products used are stable in operation under high temperature and high pressure conditions of 105 degrees, low loss and long service life.


Conventional products are equipped with 50K-100KPCS safety stock, large-volume conventional capacitors, and the delivery time is 3-5 days for batch delivery. Chenglue factory has a production scale of 20 Dewei winding machines, and the daily production of film capacitors is 300-500KPCS.


Products are widely used in LED power supply, power adapter, switching power supply, home appliance control board, lighting appliances, automotive electronics, chargers, motors, igniters and other electronic products. The product X2/Y safety capacitors have passed the United States (UL), Germany ( VDE), China (CQC), South Korea (KC) and other countries and regions product safety certification, product environmental protection has passed the requirements of ROHS, RECAH, halogen-free and other directives.


Since the establishment of the company, relying on advanced production equipment, continuous improvement of enterprise management mode, scientific and technological talents and well-trained workforce, we have strived to make Chenglue Electronics a supplier of electronic components for internationally renowned brands and well-known manufacturers. The company sincerely develops the market with the concept of "seeking reputation with quality, seeking development with reputation, and creating value for customers", and serves customers with the service concept of "customer needs are our work goals"
